Improved Mesh Management and Simulation Assignment Workflow

What's New

This release improves the reliability of mesh management, material assignment, load configuration, and simulation diagnostics. Several workflow enhancements have been introduced to make model setup more intuitive while providing better feedback during simulation.

Improvements

• Fixed the 2D material assignment workflow by automatically recognizing and assigning materials to the highest-dimensional groups within the imported mesh.

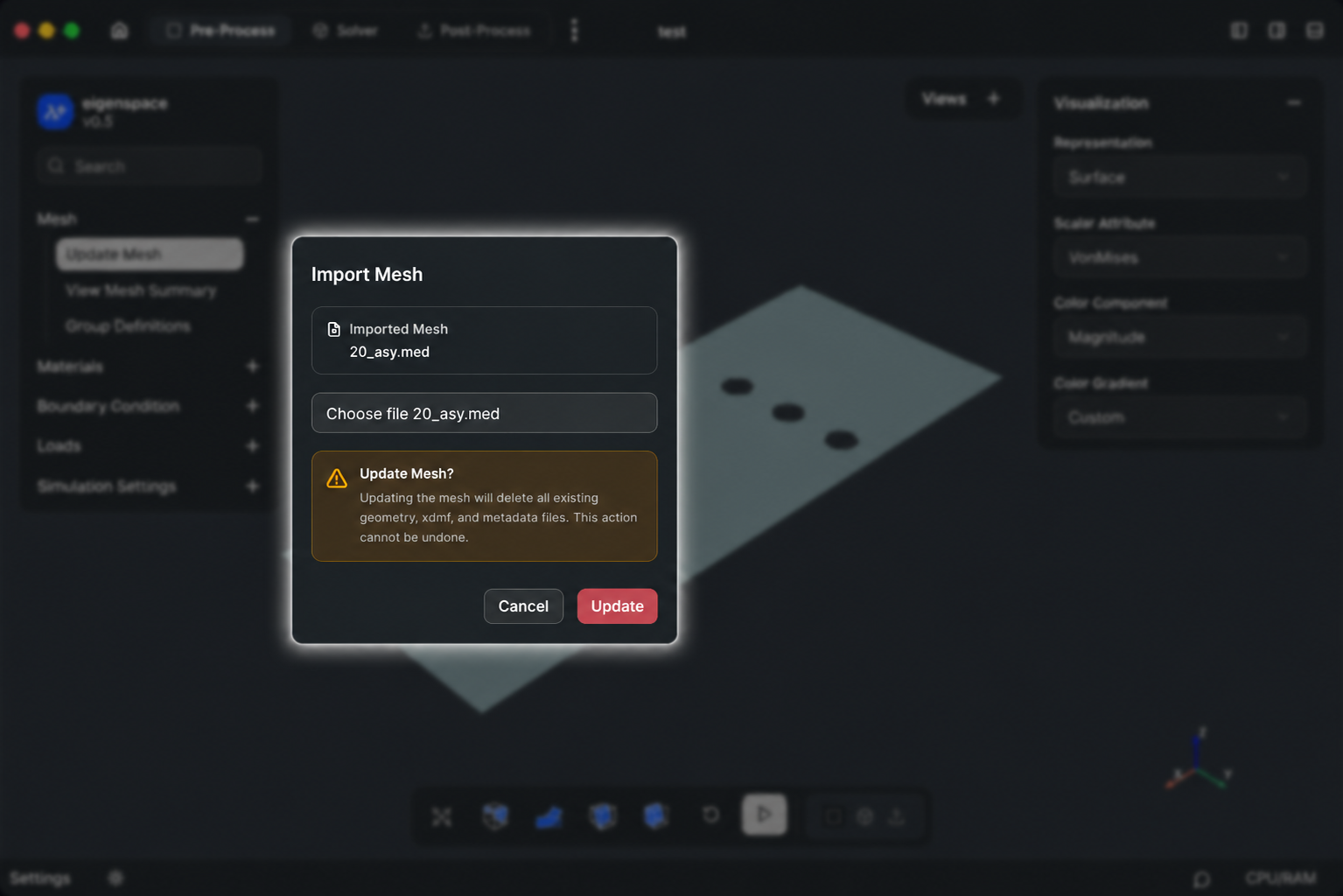

• Improved mesh import behavior by prompting for confirmation before replacing an existing mesh, ensuring that users are aware that the previous mesh and its associated files will be removed.



• Enhanced the assignment workflow by automatically expanding the Properties panel when a load or boundary condition is assigned, displaying the appropriate configuration fields based on the selected load or boundary condition type.

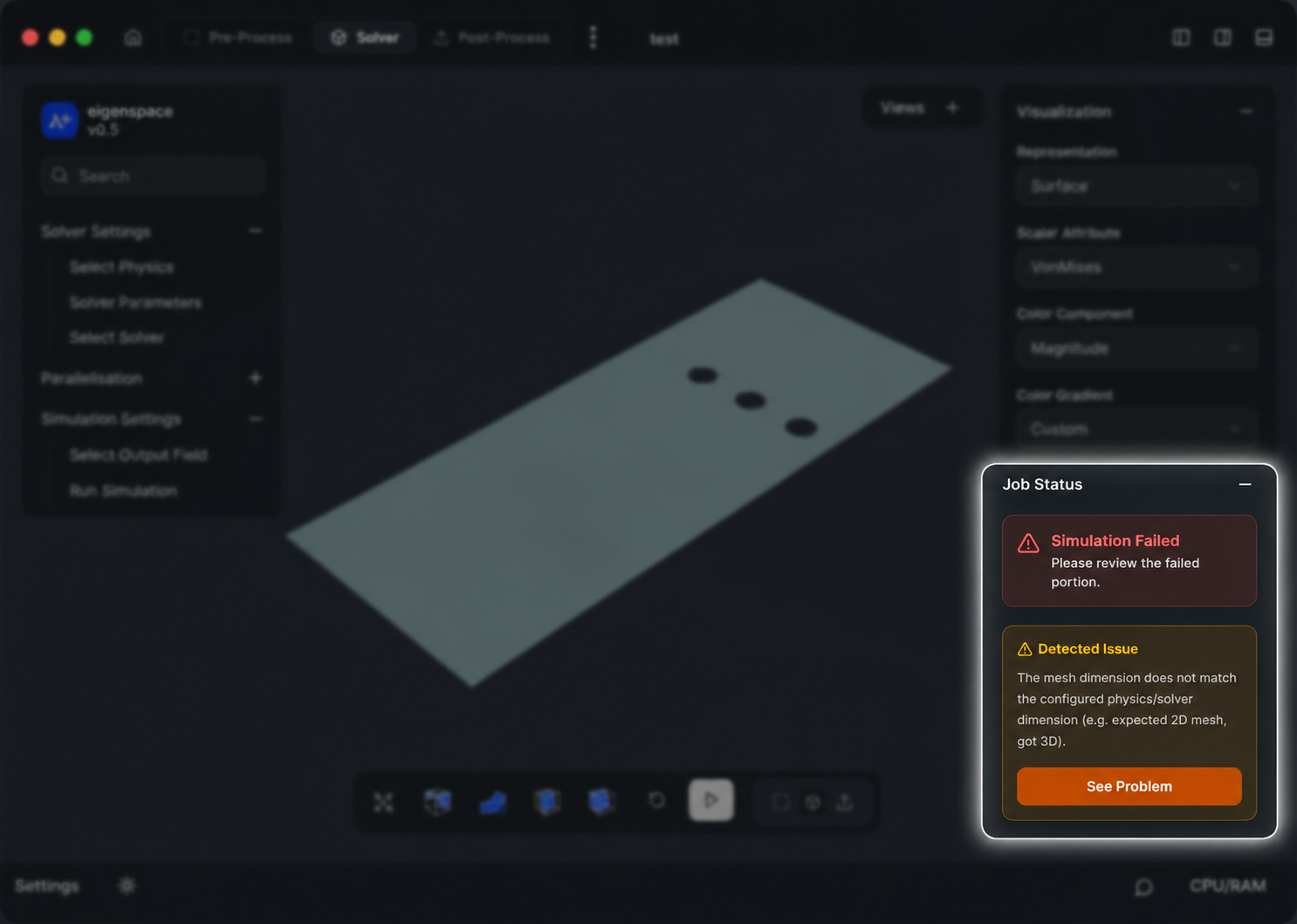

• Added a Problems button for failed simulation jobs, allowing users to quickly view failure logs and diagnose simulation issues through a dedicated popover.



• Corrected view orientation and representation for the negative coordinate axes (-X, -Y, and -Z) to provide consistent navigation within the 3D viewport.

• Improved negative load assignment behavior and added the ability to clear previously assigned load values for easier model editing.

Related Featurebase Request

• Requested by: Ritesh Barman

Engineering Reference

• Pull Request: #35

• Implemented by: Ritesh Barman
